Sequence Control Training Kit


Sequence Control Training Kit
Model : MK-SK1E (English version)
As a load device for PLC education for training of technical staff
Supplied complete with a training text (English)

Since the training text belongs to the systematic curriculum from the basics to the applied tasks,
the trainee can learn the sequence control (ladder program) efficiently.
The training textbook is aslso a reliable instruction book for instructors.



■ Specifications

Name of productSequence Control Training Kit (English version)
ModelMK-SK1E
ManufacturerMechatro Kyozai Enterprise
Overall dimensions 340 (Width) × 330 (Depth) × 150 (Height) mm
Weightapprox. 5 kg


Sequence Control Training Kit

価格:

134,200円 (税抜 122,000円)

購入数: セット
返品期限・条件 返品についての詳細はこちら
この商品について問い合わせる

  ■ Configuration(Model : MK-SK1E)
    ・Sequence Control Training Kit (Model : MK-SK1E (Rated voltage 100 VAC))
    ・Wiring cable with Y-terminals (Mark tube finished) 40 pcs
    ・Training text (totally 50 pages (English version))
      *Training text is made based on the specifications of Mitsubishi Ladder
    ・Operation manual (English version)


 Specifications of Sequence Control Training Kit Model : MK-SK1E


The sequence control training kit uses the equivalent of the test board of the National Skill Test [Sequence Control Work].
Since it is equipped with abundant input equipment and output equipment, mainly a belt conveyor,
learners can devote themselves to practical training in a fun and interesting way as an educational training device for sequence control.
シーケンス制御検定対策盤の仕様


Model MK-SK1E
Rated voltage single phase 85 - 132 VAC, 50/60 Hz
Control power 24 VDC 4.3 A
Weight approx. 5 kg
Outside dimensions 340 (Width) x 330 (Depth) x 150 (Height) mm

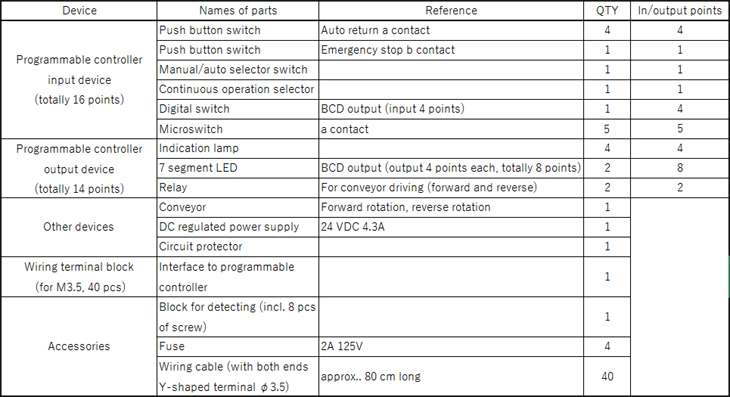

 Configuration of Sequence Control Training Kit Model MK-SK1E


シーケンス制御検定対策盤

 Training text (English version)


In order to efficiently learn sequencer (PLC) control, and to gradually improve the level from the basic tasks that are indispensable for teachers and instructors to educate, we can understand the applied tasks that are required knowledge of the certification exam.

Exercise 1 Wiring between the certification preparation board and the sequencer (PLC)
Exercise 2 Circuit where PL1 lights on by pressing PB1 (ON circuit)
Exercise 3 Circuit where PL1 lights on by pressing both of PB1 and PB2 (AND circuit)
Exercise 4 Circuit where PL1 lights on by pressing either PB1 or PB2 (OR circuit)
Exercise 5 PL1 and PL2 light on simultaneously (self-holding circuit)
Exercise 6 Conveyor driving circuit 1
Exercise 7 Interlock circuit
Exercise 8 Conveyor driving circuit 2 (self-holding circuit)
Exercise 9 Circuit using a micro switch
Exercise 10 Origin return circuit
Exercise 11 Start condition set circuit
Exercise 12 Conveyor reciprocating circuit
Exercise 13 Timer circuit
Exercise 14 Sequence control circuit
Exercise 15 Continuous operation circuit
Exercise 16 Circuit using a counter
Exercise 17 Circuit using 7-segment LED
Exercise 18 Circuit using a digital switch
Exercise 19 Item number detecting circuit
Exercise 20 Display circuit for the number of continuous operations
Exercise 21 Flicker circuit
Table of Mitsubishi FX series basic sequence command
Table of Mitsubishi FX Series applied command (Extracted)
Circuit diagram of Model MK-SK1
Parts layout of Model MK-SK1

 Delivery record


USA:Yutaka Giken Company Limited.
Cambodia:JICA
Mexican:Mabuchi Motor Co., Ltd.
USA:MITSUBA Corporation
Thailand:Department of Skill Development, Ministry of Labour Bangkok, Thailand
China:GAC AISIN AW AUTOMATIC TRANSMISSION CO.,LTD
Mexico:YUTAKA TECHNOLOGIES DE MEXICO S.A. DE C.V.
Thailand:Bridgestone Specialty Tire Manufacturing Co., Ltd.
USA:Chiyoda USA Corp.
